Introduction of ZWY-120/55L Tunnel Mining Crawler Muck Shovel Loader
ZWY-120/55L Crawler muck sholve loader Applicable to construction machinery for tunnel excavation and loading, mining engineering, water conservancy projects and small and medium cross-section water diversion tunnels, mining slag (mining) machinery, special crawler type excavation loading for coal mines machines (Slagging Machines) are mainly used for the collection and transportation of rock and stone materials for tunnels and mines with narrow production space, such as coal mines, phosphate mines, iron ore, and metal non-metallic mines.
Features of ZWY-120/55L crawler muck loader: It is a machine that combines the robot and the conveyor, and the collection and conveying functions are combined into one. The production device adopts the electro-hydraulic control system, which is safe and environment-friendly, with low energy consumption and efficiency. High characteristics. It is an advanced excavation and mining equipment that is indispensable for mines and caverns. It is an alternative to labor and other machinery. The dedicated crawler-type excavation loader (slag remover) in the mine uses a caterpillar to scoop the rock and dig the rock into its own scraper conveyor through a bucket. The conveyor unloads the rock from the tail into dump trucks and shuttle carts. Or other reprint equipment. At the same time, backhoes can also be used to dig remote rocks, and buckets can also be used to clean the work surface.
ZWY-120/55L crawler muck loader adopts electric full hydraulic drive, compact structure, large propulsion power, wide range of extraction, full-section rock loading, no dead angle, no artificial auxiliary cleaning work surface; special crawler type for coal mine The main action of the excavating loader (slag remover) is controlled by a pilot valve, the operation is simple and easy, the work is smooth and without impact, the performance is reliable, and the maintenance is convenient; The dedicated crawler type excavating loader (slag remover) in coal mine has excellent humanized design The hydraulic system adopts air-cooled, seated, driving shed, over-travel limit, high oil temperature, oil circuit blockage, motor overload and other alarm systems, greatly reducing the labor intensity of workers. The driver is safe, relaxed and comfortable when operating this unit.
Parameter of ZWY-120/55L Tunnel Mining Crawler Muck Shovel Loader
Model
|
ZWY-60
|
ZWY-80
|
ZWY-120
|
ZWY-180
|
Excavating Width(mm):
|
3870
|
4800
|
4200
|
6500
|
Uninstall Length(mm):
|
1530
|
1850
|
1600
|
2800
|
Excavating Height(mm):
|
2300
|
2800
|
1800-2700
|
4400
|
Excavating Depth(mm):
|
450
|
500
|
450
|
800
|
Unload Height(mm):
|
1400(Changeable)
|
1700(Changeable)
|
1100(Changeable)
|
2693(Changeable)
|
Minimum Loading Height(mm):
|
1350(Changeable)
|
1350(Changeable)
|
1200-1600(Changeable)
|
1700(Changeable)
|
Unload Distance(mm):
|
1600(Changeable)
|
1700(Changeable)
|
1600(Changeable)
|
3500(Changeable)
|
Maximum Rotation Angle(°):
|
±50
|
±50
|
±50
|
±50
|
Weight(T):
|
8.5
|
8.2
|
5.8
|
18.6
|
MachineDimension:
|
5000x1490x1650
|
6100x1700x1800
|
5600x1650x1700
|
13088x2350x2600
|
Loading Capacity(m3/hour):
|
60
|
80
|
60
|
180
|
Min Turning Radius(mm):
|
4000
|
5500
|
4600
|
12000
|
Climbing Ability(°):
|
≤20
|
≤25
|
≤10
|
≤25
|
Travelling Speed(m/min):
|
2-4.5
|
2-4.5
|
2-4.5
|
0.54
|
Motor Power(kw):
|
22
|
30
|
18.5/22
|
55
|
Max. Material passing Size(LxWxH) (mm):
|
800x550x500
|
650x700x650
|
810x580x420
|
800x780x800
|
Ground Clearance(mm):
|
200
|
230(Changable)
|
200
|
380
|
Applied Working Section(W*H) (m):
|
≥2x2
|
≥2.2x2.2
|
≥2x2
|
≥3.8x3.8
|
Nominal Working Pressure(Mpa):
|
20
|
25
|
20
|
32
|
Conveying Mode:
|
ScraperLeatherBelt
|
Scraper/LeatherBelt
|
Scraper/LeatherBelt
|
Scraper/LeatherBelt
|

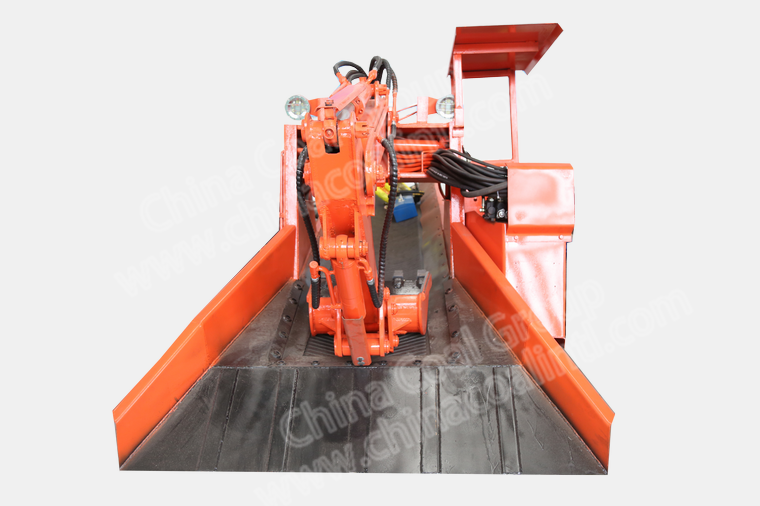

Photos of ZWY-120/55L Tunnel Mining Crawler Muck Shovel Loader
