6kg Light Steel Rail Steel Train Track

introduction of 6kg Light Steel Rail Steel Train Track

Light Steel Rail Steel Train Track is mainly used in railways and underground mine.
1.Size of Light Steel Rail Steel Train Track: 6KG, 9KG, 12KG, 15KG, 22KG, 30KG, 8KG, 18KG, 24KG
2. Light Train Track Material: Q235 /55Q
3. Light Steel Rail Steel Train Track Standard: GB11264-89 STANDARD, YB222-63 STANDARD
4. Length: 6-12M

Main Parameter of 6kg Light Steel Rail Steel Train Track

Light Steel
Model		Section Size (mm)							Sectional Area (cm2)	Theoretical Weight (kg/m)
		A	B	C	D	E	F	t
9		63.5	63.5	32.1	17.48	35.72	10.3	5.9	11.3	8.94
12		69.85	69.85	38.1	19.85	37.7	12.3	7.54	15.54	12.2
15		79.37	79.37	42.86	22.22	43.65	13.5	8.33	19.33	15.2
18		90	80	40				10		18.06
22		93.66	93.66	50.8	26.99	50	16.67	10.72	28.39	22.3
30		107.95	107.95	60.33	30.95	57.55	19.45	12.3	38.32	30.1
Heavy Steel
Model		Section Size (mm)							Sectional Area ( cm2)	Theoretical Weight (kg/m)
		A	B	C	D	E	F	t
38		134	114	68	13	71	24	13	49.5	38.73
43		140	114	70	14.5	71	27	14.5	57	44.65
45		145	126	67	14.5					45.546
50		152	132	70	15.5				65.8	51.514
60		176	150	73	16.5					60.64

Name of Commodity	Specification	Materials  (Steel Grade)	Standard of Products	Theory Weight (kgs/M)	Length of Dimension    (M)	Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail	4kgs/m	Q235	Q/YYG001-2008	4kgs/m	6,8,9,10	75
	8kgs/m	Q235	Q/YYG001-2008	8.42kgs/m		55
	12kgs/m	Q235	GB11264-89	12.2kgs/m		36
	15kgs/m	Q235/55Q/50Q	GB11264-89	15.2kgs/m		28
	18kgs/m	Q235/55Q/50Q	YB222-63	18.06kgs/m		21
	22kgs/m	Q235/55Q/50Q	GB11264-89	22.3kgs/m		21
	24kgs/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kgs/m		21
	30kgs/m	Q235/55Q/50Q	GB11264-89	30.1kgs/m		15

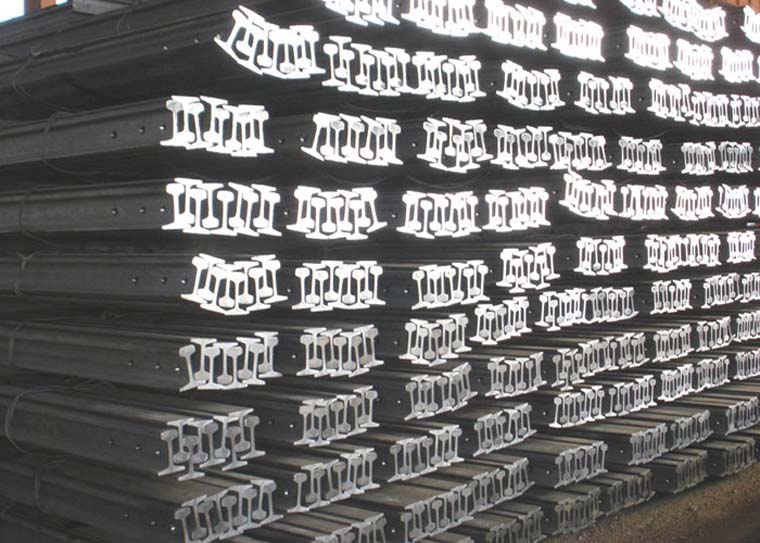

Figure Pictures of 6kg Light Steel Rail Steel Train Track
