Hydraulic Steel Angle Rebar Bending Machine Introduction
1.Angle bending machine adopt thicken top plate and high ridigity disk of iron for durable quality.
2.International standard cooper motor with utra-high hardness accessory and fender.
3.Steel wire bender equipped with stop switch device when machine is fault can stop the power immediately.
4.Advanced design,reliable quality compact structure and stable performance
5.Closed trasimission box with low noise equipped with high speed national standard motor.
Feature:
1. Adopt 10mm thicken top plate and high rigidity disk of iron, more durable.
2. Equipped with international standard copper motor.
3. Equipped with ultra-high hardness accessory and adjustable fender.
4. Equipped with stop switch, the machine can stop immediately,ensure the safety of the workers.
5. Adopt 16mm thick top plate,high rigidity disk,adjustable stylobate,the bending angle of more efficient.
6.Equipped with international standard copper wire brake motor,narrowing inertance when the machine stops and bending angle is more accurate.
7. Pin-type positioning disk,it can adjust angle from 0-360 degree,more easy and convenient.
2.International standard cooper motor with utra-high hardness accessory and fender.
3.Steel wire bender equipped with stop switch device when machine is fault can stop the power immediately.
4.Advanced design,reliable quality compact structure and stable performance
5.Closed trasimission box with low noise equipped with high speed national standard motor.
Feature:
1. Adopt 10mm thicken top plate and high rigidity disk of iron, more durable.
2. Equipped with international standard copper motor.
3. Equipped with ultra-high hardness accessory and adjustable fender.
4. Equipped with stop switch, the machine can stop immediately,ensure the safety of the workers.
5. Adopt 16mm thick top plate,high rigidity disk,adjustable stylobate,the bending angle of more efficient.
6.Equipped with international standard copper wire brake motor,narrowing inertance when the machine stops and bending angle is more accurate.
7. Pin-type positioning disk,it can adjust angle from 0-360 degree,more easy and convenient.
Hydraulic Steel Angle Rebar Bending Machine Main Parameter
Model
|
GW40
|
GW50
|
1. Bending round steel diameter
|
6-40mm
|
6-50mm
|
2.Grade thread screw steel diameter
|
6-32mm
|
6-42mm
|
3. Working plate diameter spec
|
320mm
|
320mm
|
4. Main shaft speed
|
8-15r/min
|
8-15r/min
|
5. Motor spec
|
3KW/380V
|
4KW/380V
|
6. Motor speed
|
1440t/min
|
1440t/min
|
7. Dimension
|
750× 700× 710mm
|
1060× 850× 730mm
|
8. Net weight/Gross weight
|
240kgs/260kgs
|
360kgs/380kgs
|
9. packing size
|
790× 790× 880mm
|
1100× 900× 900mm
|

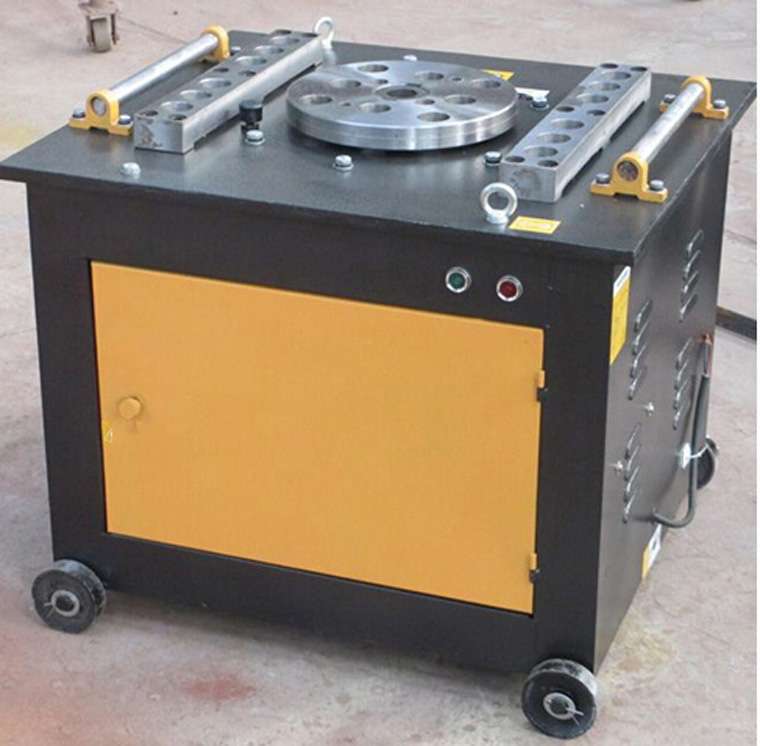

Hydraulic Steel Angle Rebar Bending Machine Figure Photos
