G Screw Mud Pump

Introduction of G-type Screw Mud Pump

G series single-screw pump and G-type screw mud pump are new types of pumps that work according to the principle of oscillating meshing volume. The main working parts are eccentric screw (rotor) and fixed bushing (stator).
Due to the special geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium temperature below 80 °C (special requirements up to 150 °C).
Because the stator is made of a variety of elastic materials, the pump's transport of high-viscosity fluids and the transport of hard suspended particulate media or fiber-containing media are not suitable for general pumping. The flow rate is proportional to the speed.
The transmission can be directly driven by a coupling, or by a speed-regulating motor, a V-belt, a gearbox, etc.
The pump has few parts, compact structure, small volume and simple maintenance, and the rotor and the stator are the wearing parts of the pump, and the structure is simple and easy to assemble and disassemble.

product features of G-type screw mud pump

G-type single-screw pump features: small parts, compact structure, small size, simple maintenance, rotor and stator are the wearing parts of single-screw pump, simple structure, easy to assemble and disassemble. It is a new type of pump that works according to the principle of twisting and meshing volume.
The main working components of the G-type screw mud pump are the eccentric screw (rotor) and the fixed bushing (stator). Use non-toxic and tasteless edible rubber, the working temperature can reach 120 degrees Celsius, if you use high temperature 120 degrees Celsius - 350 degrees Celsius, you can contact this unit. Due to the special geometrical beginnings of the two parts, separate sealing chambers are formed. The medium is uniformly propelled by the axial flow. The internal flow rate is low and the volume remains the same. The pressure is stable and therefore does not vortex and agitate the product. The output pressure of each pump is 0.6MPa-1.2MPa, and the lift is 60m-120m (clear water).

Advantage of G-type screw mud pump


1. Compared with the centrifugal pump, the single screw pump does not need to install the valve, and the flow is a stable linear flow.
2. Compared with the pneumatic diaphragm pump, the single-screw pump can transport various mixed impurities containing gas and solid particles or fibers, and can also transport various corrosive substances.
3. Compared with gear pumps, single screw pumps can deliver high viscosity materials.
4. Unlike the plunger pump, diaphragm pump and gear pump, the screw pump can be used for filling and metering of medicaments.

Parameter of G-type screw mud pump

Flow rate
0-150 m3/h
Head
0-240m
Power
0.75-37kw
Speed
500-960r/min
Caliber
20-135MM
Temperature
 -15-200 ° C

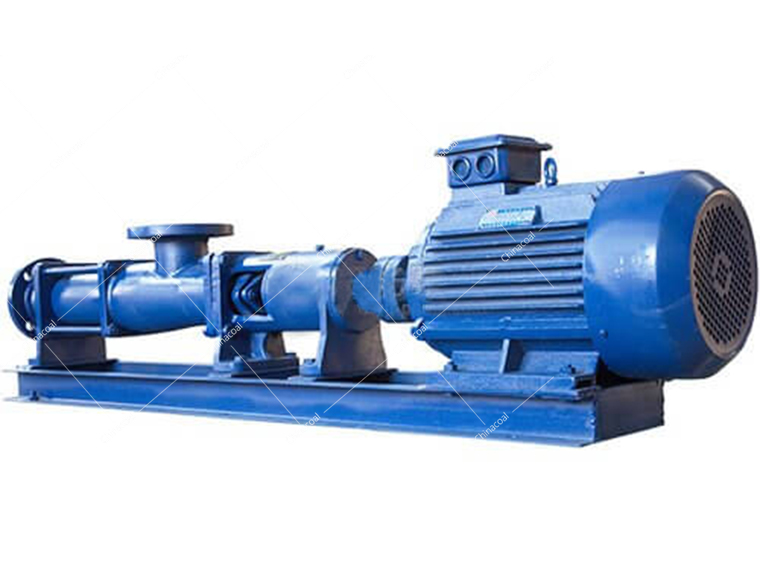

Photos of G-type screw mud pump

G Screw Mud Pump
