Introduction of GB22KG Standard Light Steel Rail
Steel Rails are the main components of railway tracks. The function of Steel rail is to guide the wheels of the rolling stock to advance, to withstand the tremendous pressure of the wheels, and to pass to the sleepers. Rails must provide a continuous, smooth and least resistant rolling surface for the wheel. In an electrified railway or automatic occlusion section, the rail can also serve as a track circuit.
The 43kg old rail can be used for laying temporary transportation lines and light locomotive lines, crane tracks and driving tracks in forest areas, mining areas, factories and construction sites.
The 43kg old rail can be used for laying temporary transportation lines and light locomotive lines, crane tracks and driving tracks in forest areas, mining areas, factories and construction sites.
Main Parameter of GB22KG Standard Light Steel Rail
Standard:GB11264-89
| ||||||||||
size
|
Head(mm)
|
Height
(mm)
|
Bottom
(mm)
|
Web
(mm)
|
Weight
(kg/m)
|
Material
(mm)
|
Length
(mm)
| |||
GB6KG
|
25.4
|
50.8
|
50.8
|
4.76
|
5.98
|
Q235B
|
6-12
| |||
GB9KG
|
32.1
|
63.5
|
63.5
|
5.9
|
8.94
|
Q235B
|
6-12
| |||
GB12KG
|
38.1
|
69.85
|
69.85
|
7.54
|
12.2
|
Q235B/55Q
|
6-12
| |||
GB15KG
|
42.86
|
79.37
|
79.37
|
8.33
|
15.2
|
Q235B/55Q
|
6-12
| |||
GB22KG
|
50.3
|
93.66
|
93.66
|
10.72
|
22.3
|
Q235B/55Q
|
6-12
| |||
GB30KG
|
60.33
|
107.95
|
107.95
|
12.3
|
30.1
|
Q235B/55Q
|
6-12
| |||
Standard:YB222-63
| ||||||||||
8KG
|
25
|
65
|
54
|
7
|
8.42
|
Q235B
|
6-12
| |||
18KG
|
40
|
90
|
80
|
10
|
18.06
|
Q235B/55Q
|
6-12
| |||
24KG
|
51
|
107
|
92
|
10.9
|
24.46
|
Q235B/55Q
|
6-12
| |||

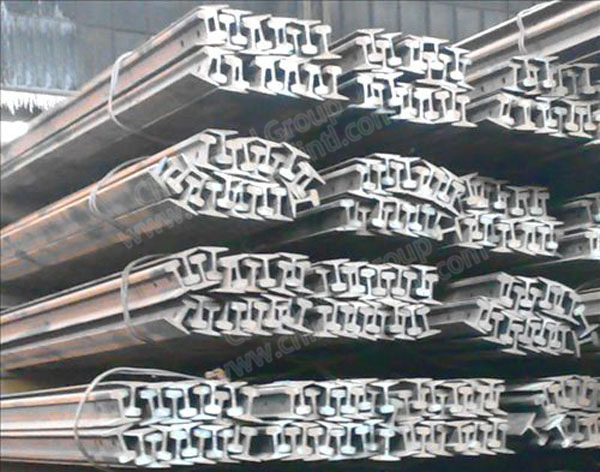

Photos Of GB22KG Standard Light Steel Rail
