10 Kg Pesticide Agriculture Spraying Drone

Introduction of  10 Kg Pesticide Agriculture Spraying Drone

10 kg spray drone

10 kg spray drone technical indicators

Dimensions (length * width * height) 2110 * 2110 * 800mm

Aircraft weight 11KG

Maximum takeoff weight 30KG

Pesticide container capacity 10L

Boom length 220cm

Body Material Carbon Fiber & Aluminum Alloy

Charger High-power lithium balance charging device

Spraying system, medicine box, diffusion spray system, booster pump

Operating temperature -10°C-40°C

Lithium battery life 300 times charge and discharge

Maximum payload (5-20) KG (±5%)

Lithium polymer power battery 22.2V/16000mA / battery life 10min

Working speed 3-8m/s (wind speed 2-3)

Relative flight height 1-3 meters from crops (depending on different crops)

Spray width (6 0.3L/min nozzles, 2.2 meters long spray tube) 2-4 meters (downwind or upwind, wind speed 2-3)

Spray flow rate 1-1.2L/min (6 nozzles)

High-concentration pesticide consumption 0.5-1.0L/mu (depending on different crops)

Single machine spraying operation efficiency of 300 mu / day (depending on the actual operation of the flying hand)

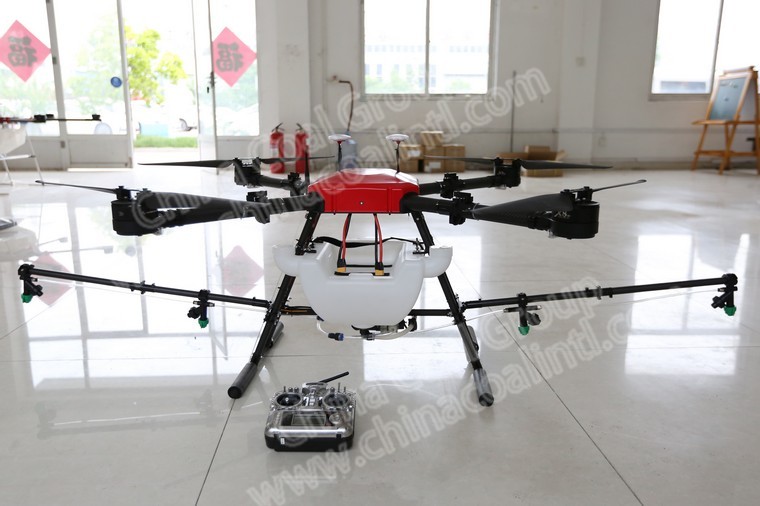

Photos of  10 Kg Pesticide Agriculture Spraying Drone
