Introduction of 2JP-55 Electric Double Drum Scraper Winch For Metal Ore/ Scraper Winch
Do you know the difference between 2JP and 2JPB electric scraper winch
For 2JP electric scraper winch, the motor is non-explosion proof.
For 2JPB electric scraper winch, the motor is explosion proof.
For " 2 ",it means the drum's quantity is two.
For "J",it means electric winch.
For " P",it means the electric winch use for scraping.
For "B",it means the explosion proof electric winch.
Applicationof JP-55 Electric Double Drum Scraper Winch For Metal Ore
2JP,2JPB series scraper winch is mainly use in metal mine and other coal mine’s pit and
ore’s carrying and filling working, is applicable to the scraping which ground
is horizontal or the slope not more than 44 degree.
For 2JP electric scraper winch, the motor is non-explosion proof.
For 2JPB electric scraper winch, the motor is explosion proof.
For " 2 ",it means the drum's quantity is two.
For "J",it means electric winch.
For " P",it means the electric winch use for scraping.
For "B",it means the explosion proof electric winch.
Applicationof JP-55 Electric Double Drum Scraper Winch For Metal Ore
2JP,2JPB series scraper winch is mainly use in metal mine and other coal mine’s pit and
ore’s carrying and filling working, is applicable to the scraping which ground
is horizontal or the slope not more than 44 degree.
Parameter of 2JP-55 Electric Double Drum Scraper Winch For Metal Ore/ Scraper Winch
2JP-55 Electric Double Drum Scraper Winch For Metal Ore
| |||||||
Item: scraper winch
|
Unit
|
2JP-7.5
|
2JP-15
|
2JP-22
|
2JP-30
|
2JP-55
| |
Pulling tension
|
KN
|
8
|
14
|
20
|
28
|
50
| |
wire rope average speed
|
m/s
|
1
|
1.1
|
1.2
|
1.2
|
1.2
| |
Wire rope diameter
|
mm
|
9.3
|
12.5
|
14
|
15.5
|
18.5
| |
Drum
|
Diameter(mm)
|
205
|
225
|
280
|
280
|
350
| |
Width(mm)
|
80
|
125
|
510
|
160
|
180
| ||
Main drum rope capacity
|
m
|
45
|
80
|
80
|
90
|
100
| |
Second drum rope capacity
|
m
|
45
|
100
|
100
|
110
|
130
| |
Electric power
|
Kw
|
7.5
|
15
|
22
|
30
|
55
| |
rotate speed
|
m/s
|
1440
|
1460
|
1470
|
1470
|
1470
| |
Dimension |
Length
|
mm
|
1210
|
1525
|
1600
|
1650
|
2070
|
Width
|
mm
|
565
|
660
|
730
|
820
|
1010
| |
Height
|
mm
|
490
|
620
|
640
|
700
|
890
| |
Weight(main engine)
|
KG
|
390
|
660
|
900
|
1155
|
2125
| |

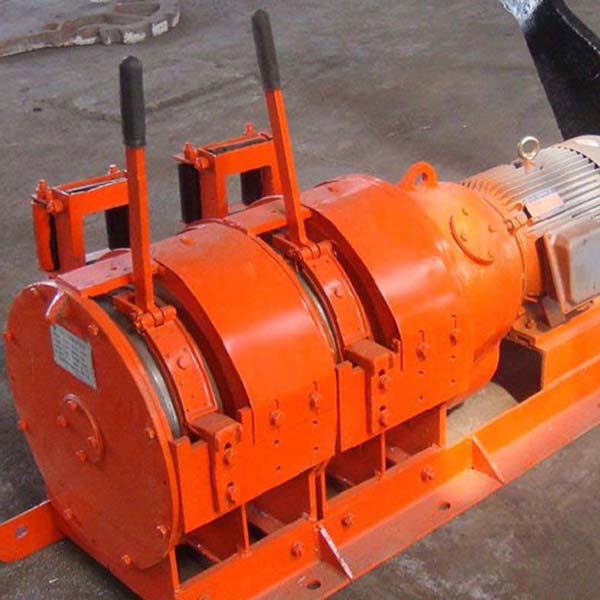

Pictures of 2JP-55 Electric Double Drum Scraper Winch For Metal Ore/ Scraper Winch
