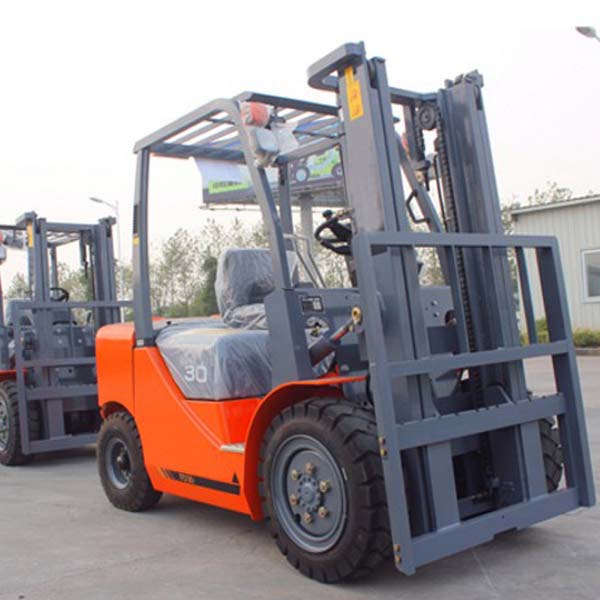

Introduction of Safe and Efficient 3T FD30 Diesel Forklift Truck
Safe and Efficient 3T FD30 Diesel Forklift Truck is integrated overhead guard and rain cover offering outstanding protection and visibility, offers a wide range of Diesel, Gasoline and LPG engine options,forklifts do comply with the latest safety, emission and noise standard,a hydraulic buffering system provides controlled and smooth lowering of loads and minimizes the risk of damage.
Parameter of Safe and Efficient 3T FD30 Diesel Forklift Truck
Technical parameters
|
Parameter Name
|
Units
|
FD30C
| |
Features
|
Power type
|
Diesel
| ||
Rated Load
|
kg
|
3000
| ||
Load Center
|
mm
|
500
| ||
Lifting Height
|
mm
|
3000
| ||
Free lifting Height
|
mm
|
145
| ||
Fork Size
|
(L*W*T)
|
mm
|
1070*125*45
| |
Mast Tilt Angle
|
Front/Rea
|
6/12
| ||
Minimum Turing Radius
|
mm
|
2400
| ||
Minimum Stacking Right Angle Channel Width
|
mm
|
4280
| ||
Minimum right angle channel width
|
mm
|
2120
| ||
minimum turing Radius
|
mm
|
120
| ||
overhead guard height
|
mm
|
2110
| ||
front overhang
|
mm
|
475
| ||
Performance
|
Max.travelling speed
|
full load
|
km/h
|
20
|
Max. lifting speed
|
full load
|
m/s
|
470/520
| |
Max. traction
|
full load
|
kn
|
18
| |
Max.climbing ability
|
%
|
20
| ||
Dimension
|
overall length
|
without fork
|
mm
|
2685
|
overall width
|
mm
|
1230
| ||
Max. fork lifting height/
weight(with load backrest)
|
mm
|
4265
| ||
Mast height
|
mm
|
2055
| ||
Chassis
|
tyre
|
front
|
mm
|
28*9-15-12PR
|
rear
|
mm
|
6.50-10-10PR
| ||
wheel base
|
mm
|
1700
| ||
wheel tread
|
front/rear
|
mm
|
1000/970
| |
curb weight
|
without load
|
kg
|
4350
| |
Power
|
battery
|
voltage/capacity
|
12/90
| |
engine
|
model
|
Xinchang490BPG
| ||
rated power
|
Kw/r/p.m
|
40/2650
| ||
rated torque
|
Nm/r.p.m
|
162/2000
| ||
bore*stroke
|
mm
|
90*105
| ||
cylinder amout
|
4
| |||
displacement
|
L
|
2.82
| ||
fuel tank volume
|
L
|
70
| ||
gears front/back
|
1/1
| |||
working pressure
|
Mpa
|
