Introduction of 3 Ton Diesel Forklift
Certificate: CE
Capacity: 1001kg-5000kg
Export Markets: Global
Additional Info.
Trademark: SHANTUI/China Coal
Origin: China
HS Code: 84272090
Production Capacity: 5000 Units/Year
Capacity: 1001kg-5000kg
Export Markets: Global
Additional Info.
Trademark: SHANTUI/China Coal
Origin: China
HS Code: 84272090
Production Capacity: 5000 Units/Year
Description of 3 Ton Diesel Forklift
1. Japanese Yanmar 4TNE98 Engine, with CE.
2. Excellent hydraulic drive system.
3. Ergonomic design, FOP function and adjustable suspension seat.
4. Shock absorption design overhead guard.
5. Intelligent electronically controlled instrument & convenient shifting mechanism.
6. Graceful appearance.
2. Excellent hydraulic drive system.
3. Ergonomic design, FOP function and adjustable suspension seat.
4. Shock absorption design overhead guard.
5. Intelligent electronically controlled instrument & convenient shifting mechanism.
6. Graceful appearance.
Parameter of 3 Ton Diesel Forklift
STANDARD DIMENSIONS
| ||||
General
|
Model
|
SF30(Hydraulic)
|
unit
| |
Load capacity
|
3000
|
Kg
| ||
load center
|
500
|
mm
| ||
Power type
|
Diesel
| |||
Dimensions
|
Lift size
|
3000
|
mm
| |
Free lift height
|
160
|
mm
| ||
Fork size
|
1070× 122× 45
|
mm
| ||
Mast tilt angle
|
6/12
|
°
| ||
Front overhang
|
495
|
mm
| ||
Overall dimensions
|
Length to face of fork
|
3779
|
mm
| |
Overall width
|
1226
|
mm
| ||
Overall height fork lowered
|
2070
|
mm
| ||
Overall height fork raised
|
4216
|
mm
| ||
Overhead guard height
|
2140
|
mm
| ||
Turning radius
|
2400
|
mm
| ||
Min. right angle aisle width
|
2100
|
mm
| ||
Performance
|
Travel speed(full load/no load)
|
19/20
|
Km/h
| |
Lift speed with load
|
420
|
mm/sec
| ||
Max. gradeability
|
20
|
%
| ||
Self weight
|
4350
|
Kg
| ||
Wheel& tires
|
Tires
|
Front
|
28× 9-15-14PR
| |
Rear
|
6.50-10-10PR
| |||
Tread
|
Front
|
1000
|
mm
| |
Rear
|
980
|
mm
| ||
Wheelbase
|
1700
|
mm
| ||
Ground clearance(full load/no load)
|
Mast
|
110/135
|
mm
| |
Frame
|
130/135
|
mm
| ||
Drive units& control
|
Engine
|
Model
|
YANMAR 4TNE98
| |
Rated output
|
42.1/2300
|
Km/rpm
| ||
Rated torque
|
196.7/1600
|
N@ m/rpm
| ||
No. of cylinder
|
4
| |||
Bore× stroke
|
98× 110
|
mm
| ||
Displacement
|
3.2
|
L
| ||

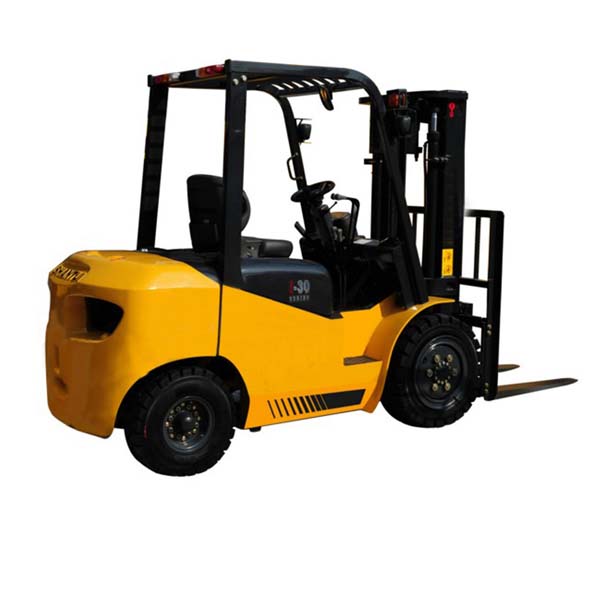

Pictures of 3 Ton Diesel Forklift
