GY-50-1 Double Wheel Mobile Rotary Drilling Rig

http://www.chinacoalglobal.com/productinfo1473
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

GY-50-1 portable drilling rig is adopted with hydraulic pressure feeding structure; it can proceed rotary or percussion drilling, and can be moved by towing the trailer, and can be towing removal. The rig is widely used for geotechnical engineering drilling in field like construction of industrial and vicil buildings, roads, railways, bridges, dams as well as for geological prospecting work and blasting hole drilling

Using of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

The GY-50-1 Double Wheel Mobile Rotary Drilling Rig is applicable in plough layer, clay, sand seam, sand and stone seam, sand and boulder bed in Quaternary overburden layer. GY-50-1 Double Wheel Mobile Rotary Drilling Rig can get tube sample in varied depth, and it can be used in core or borehole drilling

Parameter of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

Basic Parameters of GY-50-1 Double Wheel Mobile Rotary Drilling Rig
Drilling depth
50 m
Drilling diameter
130 mm
Drill pipe diameter
42 mm
Weight (without engine)
400 kg
Dimension (length * width * height)
1660 * 732 * 1170 mm
Rotary Table
Rotate speed
54, 140, 300 r / min
Maximum torque
350 N*m
Feeding travel
400 mm
Maximum cylinder feeding force
10,000 N
Maximum cylinder lifting force
30,000 N
Lifter
Lifting capacity – single rope, low speed
10,000 N
Bobbin line speed
0.14, 0.32, 0.46, 0.68, 1.17, 2.53 m/s
Bobbin diameter
100 mm
Rope diameter
9.3 mm
Rope capacity
18 m
Drilling tower
Type
Tripod
Height
6 m
Power
Type
Diesel
Rated power
8.8 Kw
Weight
96 kg
Contact us to get cost of GY-50-1 Double Wheel Mobile Rotary Drilling Rig

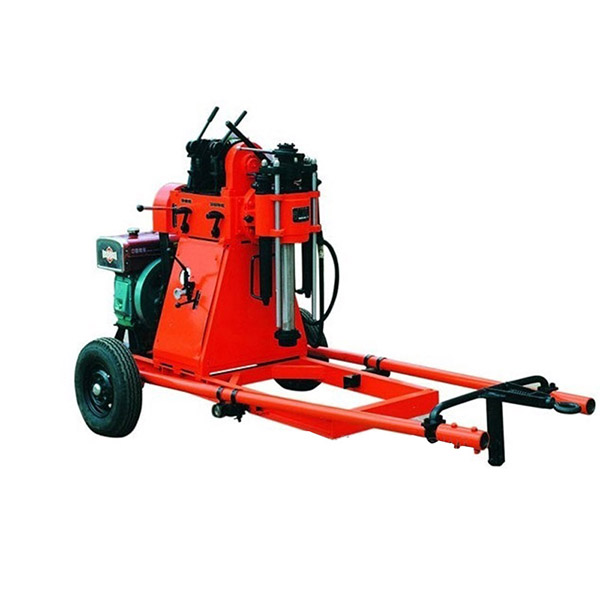

Pictures of GY-50-1 Double Wheel Mobile Rotary Drilling Rig
