FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station.

Introduction of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.
Low upfront cost
Reduce transportation cost
Minimize labor cost
Maximize job efficiency

Features of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
High Efficiency
Capacity:14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
Labor-saving
4 wheel drive, 4 wheels steering
Accurate Electric Weighing System
The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
Loading, Weighing, Pumping, Mixing, Delivering, Discharging.

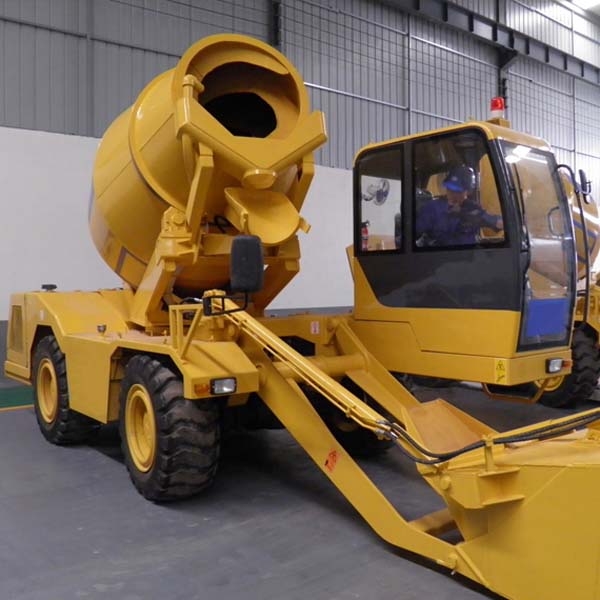

Pictures of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck



Parameter of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

Name

Item

Specification

Vehicle

Net

7500kg

Gross

15000kg

Transmission

Hydraulic

4*4

Brake

Hydraulic Brake


Front and Rear Independent System

Chassis

Off Road, CARRARO axle

Distance of Front/Rear Wheelbase

1905mm



Wheelbase

2155mm

Loader

Capacity

0.6m³

Control

Hydraulic

Tile Angle

30%

Speed

High

0-20km/h

Low

0-9km/h

Min.Turning Radius

6.5m/R

Tire

16/70-20

Dimensions(L*W*H)

7011*2441*3310(MM)

Diesel Engine

Type

4BTA3.9-C110

Rated Power/rpm

82KW/2200rpm

Max.Torque/rpm

460N.m/1400rpm

Cylinder

4-cylinder/3.9L

Bores

102mm

Cooling Type

Water cooling

Fuel Consumption

207g/kw.h

Starter

Electric

Emission Standard

China II

Mixing Drum

Drum Capacity

3.5m³,14m³/hr.

Bank Angle

16°

Rotation Speed

10-16r/min

Angle of Drum Rotation

no less than 270°

Chute

Swing Angle

no less than 60°

Angle Control

Hydraulic

Size

Long:106cm

Short:40cm
