Introduction of Single-side Curved Rail Dumping Mine Ore Carts
Single-side Curved Rail Dumping Mine Ore Carts, with the advantages of high Stress area welds eliminated, mass and section thickness optimized, simplified state of the art mainframe and easy to operate, and easy replacement of wear and spare parts, is suitable for tunnel coal transportation.
Parameter of Single-side Curved Rail Dumping Mine Ore Carts
Parameters
|
unit
|
key parameter
| ||||||
Model
|
1.2M3 double Side type(N)
|
1.6M3
hydraulic pressure
|
2.5M3
Hydraulic pressure
|
4M3
Hydraulic pressure
|
6M3
Hydraulic pressure
|
8M3
Hydraulic pressure
| ||
volume
|
M3
|
1.2
|
1.6
|
2.5
|
4
|
6
|
8
| |
load
|
T
|
3
|
4
|
6.25
|
10
|
15
|
20
| |
track gauge
|
mm
|
600
|
762
|
762/900
|
762/900
|
762/900
|
762/900
| |
wheel base
|
mm
|
620
|
800
|
120
|
2000
|
2000
|
2600
| |
wheel diameter
|
mm
|
300
|
350
|
400
|
350
|
350
|
350
| |
Binder shape
|
Bolt link
|
Bolt link
|
Bolt link
|
Bolt link
|
Bolt link
|
Bolt link
| ||
Traction high
|
mm
|
335
|
320
|
320
|
430
|
430
|
430
| |
Uninstall Angle
|
(.)
|
45
|
45
|
42
|
42
|
42
| ||
overall dimension
|
long
|
mm
|
2150
|
2500
|
3650
|
3650
|
4850
|
6350
|
wide
|
mm
|
1450
|
1200
|
1250
|
1500
|
1500
|
1500
| |
high
|
mm
|
1270
|
1300
|
1300
|
1586
|
1586
|
1634
| |
self weight
|
1000
|
1663
|
2505
|
3850
|
4900
|
6300
| ||
Traction speed
|
km/h
|
12
|
12
|
12
|
8
|
8
|
8
| |
turn radius
|
m
|
8
|
10
|
12
|
15
|
15
|
18
| |

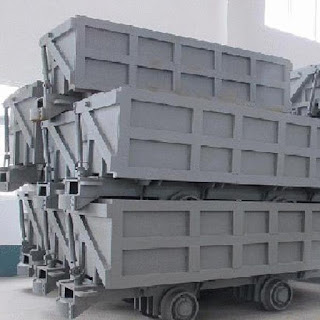

Pictures of Single-side Curved Rail Dumping Mine Ore Carts
