Elastic Crane Rail Clips Used for Railway

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1533

Introduction of Elastic Crane Rail Clips Used for Railway

Railway parts is the root causes of vibration,supplier of china ,railway clip in order to overcome the vibration source, reduce the occurrence of rail joint diseases, use of railway fasteners is the best choice. increases the joint resistance.ensure that the railway transport safety. Therefore, the construction of the railway cargo rail transit from railway fasteners "support". The structure is compact, buckle pressure big, keep track ability, less workload maintenance , especially suitable for the large mechanical work line.our mainly export railway spring clips type have e1809 e1609 e1813 e1817 e2001 e2007 e2009 e2055 e2056 e2063 PR401 PR415 PR601 SKL-1 SKL-3 etc.

Parameter of Elastic Crane Rail Clips Used for Railway

Item No.	Description	Specification	Material
1	Fish Bolt	22×135, 24×135, 24×145	Q235
2	High-strength Fish Bolt	22×135, 24×135, 24×145	C45
3	Insulated Bolt	22×160, 24×160, 24×170	C45
4	T type bolt	M24x110	Q235
5	Flat Washer	6×25×50	Q235
6	Spring Washer	20×8, 24×8, 26×8
7	Double Spring Washer	26×8
8	Screw Spike	M22x185, M24x195	Q235
9	Square head screw spike	22x145, 22x155, 22x165	Q235A
10	Hexagon screw spike	22x145, 22x155, 22x165, 22x185, 22x195	Q235A
11	Dog Spike	16×165
12	Gauge apron	10#, 13#, 14#, 20#	Q235
13	Antiseptic gauge apron	10#	Q235
14	Steel Tie plate/ base plate		QT450-10
15	Rail anchor		QT450-10, Q235A, QT400-15
16	Rubber tie plate	P43, P50, P60	Rubber
17	Elastic rail clip	A,B Type	60Si2Mn
18		SKL serious Type	60Si2Cr, 38Si7
19		G Type	60Si2MnA
20		W Type
21	Antiseptic elastic rail clip	B Type	60Si2MnA
22	Nylon apron block	V type, 0-4#, 2-6#	polyamide 66
23	Insulated Rail Gauge Rod	¢32, ¢36
24	Rail Gauge Rod	¢32, ¢36
25	Fish plate	43kg, 50kg, 60kg, 75kg	B7. 45#
		BS60, BS75R, BS80A, BS90A	B6, B7
		Insulated fish plate (43, 50, 60, 75)..	B6, B7
		UIC60, UIC54	50#, 45#

Pictures of Elastic Crane Rail Clips Used for Railway

FMG-4.4 Internal Combustion Railway Rails Grinder

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1474

Introduction of FMG-4.4 Internal Combustion Railway Rails Grinder

FMG-4.4 internal combustion rails grinding machine is a special tool for polishing welded joint, surface damage and side trimming of the rails.
FMG-4.4 Internal Combustion Railway Rails Grinder Feature
1.Gasoline driven, strong adaptability to an open working environment.
2.Compact structure, light weight, convenient station conversion.
3.Partial grinding operation of railway rail conveniently and swiftly.

Parameter of FMG-4.4 Internal Combustion Railway Rails Grinder

Model	FMG-4.4
Engine type:	Petrol engine
Power:	5.2kW
Max. Rotate speed	4000r/min
Size of grinding wheel:	F150 mm×F55 mm×70 mm
Grinding wheel stroke:	50 mm.
Grinding wheel angle	0-90°
Machine weight:	60kg.
Overall dimension:	1500x6300x760 mm

Pictures of FMG-4.4 Internal Combustion Railway Rails Grinder

CCG Mining Explosion-proof Diesel Locomotives

Click below office website can knew more retails about product

http://www.railroadmachinery.com/productinfo1435

Introduction of CCG Mining Explosion-proof Diesel Locomotives

CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction. Mine explosion-proof drum & rail locomotive diesel engine series, is in line with the ideal of coal mine production safety transportation equipment. It is reasonable structure, compact, energy saving, high efficiency, easy operation and maintenance, frame lines motor vehicle, motorcycle batteries, compared does not need to set up traction power, do not need AC power and charging equipment.

Characteristics of CCG Mining Explosion-proof Diesel Locomotives

1.Double-ended locomotive driving, easy operation and passengers, and better outlook;
2.Body short, maintaining roadway turning radius by the flexibility and stability;
3.Electric starter, control rooms for sound processing, noise reduction;
4.By (European) import the essence of device, the second exhaust gas treatment, to further reduce emissions.

Parameter of CCG Mining Explosion-proof Diesel Locomotives

Model (basic parameter) Item	CCG 3.0/600J (B)		CCG 5.0/600J (B)	CCG8.0/600J
Matched Power Model	ZS1115FB		YH1125SFB	YH4108DFB(A)
Dimension (L*W*H) mm	2400*920(1000)*1600		3020*1000(1098)*1600	3700*1100*1600
Weight kg	3000		5000	8000
Greatest Traction Force KN	4.5		7.5	12
Pulling Tonnage T	15		22	35
Gauge mm	600(made to order)
Wheelbase mm	706(712)	880(860)		980
Greatest Speed km/h	15+1	17+1		20+2
Diesel Engine Power (kw)/Rotating Speed (r/min)	11/2200	14.7/2200		52/2400
Smallest Railway Orbit m	5	6		7
Greatest Braking Force N	5000	8000		12800
Traction Height mm	270 320	320 430		320 430
Braking Distance m	40
Height Above Ground mm	80	125		125
Braking Mode	foot and machine control			air and hand wheel control
Exhaust Quality	CO≤0.1% NOX≤0.08%

Pictures of CCG Mining Explosion-proof Diesel Locomotives

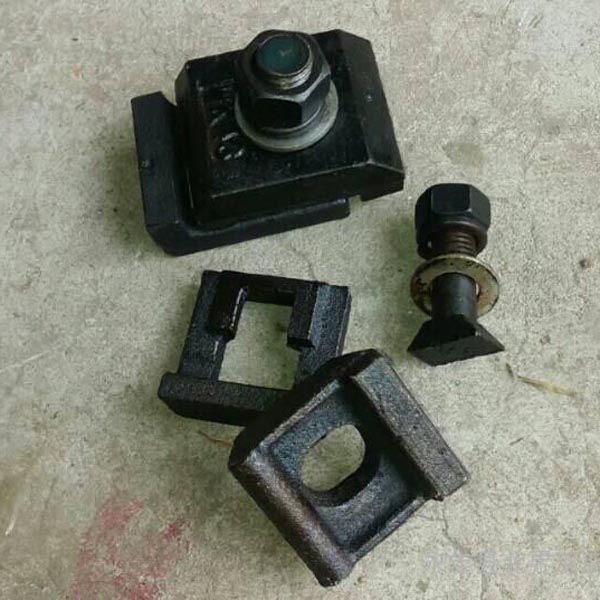

Railway Clamp KPO Colored or HDG for Rail Fastening

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1532
chinacoal011

Introduction of Railway Clamp KPO Colored or HDG for Rail Fastening

Railway Clamp KPO Colored or HDG for Rail Fastening is used for the form-fitting and rescue connection of two rail ends,wide variety of applications due to short and compact design,used in pairs.The rail clamp device makes the cracked rail tight through joint splint and bolts when the rail is too late to be replaced, which makes sure the train can pass smoothly.

Parameter of Railway Clamp KPO Colored or HDG for Rail Fastening

Name	Rail Clamp
Assembly	base plate, cover plate, t bolt, nut, spring washer, flat washer, pin
Material	base plate and cover plate: ductile cast iron, cast steel t bolt, nut, flat washer: Q235 carbon steel spring washer: 60Mn,60si2Mn
Surface	plain, black, zinc plated, HDG, etc
Usage	railway, crane rail, or other rails
Light Rail Model	TG30/43/50
Heavy Rail Model	QU70/80/100/120
Samples	Samples are availible
Delivery	within 15 days after got payment
Package	bulk in carton, then on pallet, or according to customers' requirement

Pictures of Railway Clamp KPO Colored or HDG for Rail Fastening

GM-2.2 2.2KW Electric Rails Grinder Machine

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1473
chinacoal011

Introduction of GM-2.2 2.2KW Electric Rails Grinder Machine

GM - 2.2 electric rail grinding machine is suitable for the grinding of 43 kg/m - 75 kg/m rail welding line, uneven joints, rail side fat edge, rail surface repairing parts, etc. With high working efficiency, good quality and simple operation, it is necessary tool for railway maintenance.

Parameter of GM-2.2 2.2KW Electric Rails Grinder Machine

Model:	GM-2.2	Electric Motor:	380V/3phase
Rotate Speed:	28-40r/min	Power:	2.2kw
Cup Type Grind Wheel:	150×80×32mm	Bolt Fastening Flat Wheel:	150×60×55mm
Spindle Rotate Speed:	3700r/min’	Roller Span:	1000mm
Weight::	70kg

Pictures of GM-2.2 2.2KW Electric Rails Grinder Machine

5T Underground Mining Electric Diesel Locomotive

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1434
chinacoal011

Introduction of 5T Underground Mining Electric Diesel Locomotive

5T Underground Mining Electric Diesel Locomotive is in line with the ideal of coal mine production safety transportation equipment. Small investment, the use of low maintenance costs. Meanwhile, the product configuration headlights, automatic protection devices, cables are flameproof or intrinsically safe type, equipped with a waste gas purification plant, very safe, reliable and does not pollute the environment. Mine explosion-proof locomotive, the use of exhaust gas purification system that allows diesel engine exhaust emissions to meet explosion-proof "diesel technology for coal mine explosion test standard" requirement. Particularly suitable for the remote areas, lack of electricity, less electricity, gas and coal dust explosions which are dangerous places of the mine rail practical. So the traction is not only the advantage of a tractor battery, but also safer, more economical, easier maintenance. Practice confirmed that the product is the ideal auxiliary transport coal mine equipment.

Parameter of 5T Underground Mining Electric Diesel Locomotive

Models	CCG 5.0/600J (B)
Matched Power Model	YH1125SFB
Dimension (L*W*H) mm	3020*1000(1098)*1600
Weight kg	5000
Greatest Traction Force KN	7.5
Pulling Tonnage T	22
Gauge mm	600
Wheelbase mm	880(860)
Greatest Speed km/h	17+1
Diesel Engine Power (kw)/Rotating Speed (r/min)	14.7/2200
Smallest Railway Orbit m	6
Greatest Braking Force N	8000
Traction Height mm	320 430
Height Above Ground mm	125

Pictures of 5T Underground Mining Electric Diesel Locomotive

Bilateral Railroad Turnout Track Switch

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1531
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of Bilateral Railroad Turnout Track Switch

Bilateral Railroad Steel Rail Turnout Switch, which dovetail with the turnout to the sides of the two stocks Road bifurcation. Three-way turnout as V-shaped, while convergence of three tracks, mechanically operated by two sets of sharp turn rut track. Double Slip Switches like X-shaped, in fact, equivalent to four single turnout and a diamond-shaped cross combinations.

Parameter of Bilateral Railroad Turnout Track Switch

Number	Model	Gauge(mm)	Frog No.	Curve	Radius(m)	Total Weight(kg)
1	DK612-2-3	600	No.2	3	400	311
2	DK612-3-6		No.3	6	6100	515
3	DK612-4-12		No.3	12	6800	573
4	DK612-5-15		No.5	15	7400
5	DK615B-2-3		No.2	3	4000
6	DK615B-3-6		No.3	6	6100
7	DK615B-4-12		No.4	12	6800
8	DK615B-5-15		No.5	15	7400

Pictures of Bilateral Railroad Turnout Track Switch

KDJ High Speed Electric Handheld Railway Rail Saw

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1472
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of KDJ High Speed Electric Handheld Railway Rail Saw

KDJ High Speed Electric Handheld Railway Rail Saw is used in coal mines, ports, mining and other rail of 50 kg/m and below the sawing operation.Electric rail sawing machine is high efficiency, simple operation, reduce labor intensity of electric rail sawing machine, etc.
Grinding wheel spindle displacement Angle is big, electric rail sawing machine utilization rate above 90%, the clamping is convenient, fast cutting, saw cut no burn phenomenon. Using gasoline engine as power source, is suitable for the power of the environment, to push on the ground and rails.

Parameter of KDJ High Speed Electric Handheld Railway Rail Saw

(1) Motor power	3.0kw(4.0)Voltage380V
spindle speed	3000r/min
(2) The sawing grinding wheel piece	Φ400×Φ25×4
(3) Cutting range	24—43—75 kg/m
(4) Cut verticality	less than0.5mm
(5) Utilization rate of grinding wheel piece	43rail use 6—7 times  50rail use5—6times  75rail use4—5times
(6) Size	680×430×580
(7) Total weight	65kg(3.0) 75kg(4.0)

Pictures of KDJ High Speed Electric Handheld Railway Rail Saw

China Coal Mining Use Diesel Locomotive

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1433
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of China Coal Mining Use Diesel Locomotive

The feature of China Coal Mining Use Diesel Locomotive is traction invert control the starting, speed, direction change and braking, which decreased energy consumption, have good electric-saving effect. Invert have shake-proof, damp-proof and dust-proof function, the control loop controlled by 24V, 0.5A light current, with good safety performance, with interlock function when direction change, which avoid damage if driver using anti-vehicle braking.
The locomotive with simple construction, low defective rate, easy to maintenance.

Parameter of China Coal Mining Use Diesel Locomotive

Model			CTY5/6,7,9G
Adhesive  Weight			5t
Gauge			60,762 or 900mm
Traction Force			7.06kN
MAX Traction Force			12.26kN
Speed			7km/h
Power Supply		Voltage	90V
		Capacity	385Ah
Motor Power *sets			7.5 kW*2
Dimension	Length		2850mm
	Width		920,1082/1220mm
	Height		1550mm
	Wheelbase		850mm
	Wheel Diameter		Φ520mm
MIN Turning Radius			6m
Way of Speed Control			Resistance or Chopped wave
Braking Control			Mechanism or hydraulic pressure

Pictures of China Coal Mining Use Diesel Locomotive

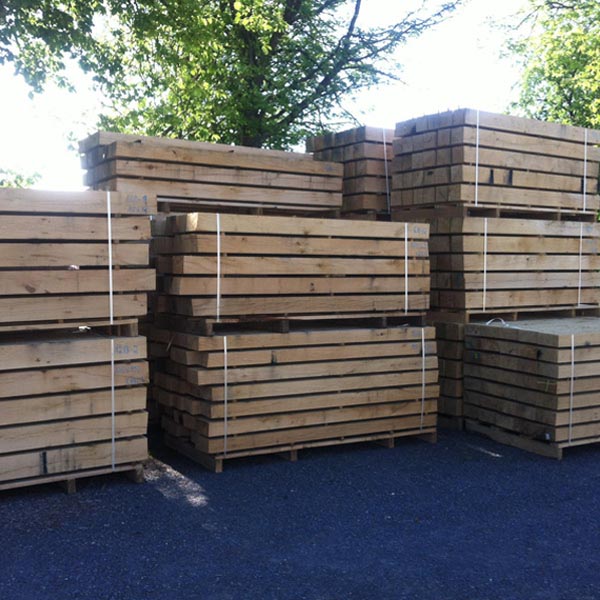

China Coal Reclaimed Railways Wooden Sleepers

Click below office website can knew more retails about product
http://www.chinacoalglobal.com/
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of China Coal Reclaimed Railways Wooden Sleepers

China Coal Reclaimed Railways Wooden Sleeper has good elasticity, light weight, easy fabrication, and other significant characteristics of insulation performance is good. Fasteners with wood blocking connection simple, laying and maintenance, transportation is convenient, wooden sleeper and have bigger friction coefficient between gravel ballast. Wooden sleeper toughening corrosion, can absorb more than other sleeper train weight and less prone to fracture. But its drawback is that use fixed number of year is shorter, consumption of large amount of wood. Wooden sleeper easy to corrupt, the reason from insect pests, the influence of the environment and climate, and the spike on the wood blocking hole by using long relaxation, wooden sleeper most commonly so only decades of life. To effectively extend the service life, sleepers generally must be used after filling the anti-corrosion. The sleepers, now use are embalmed, to prevent pests and to extend the use fixed number of year.

Parameter of China Coal Reclaimed Railways Wooden Sleepers

Main material	radiata pine pinus elliottii/fir/larch/mongolica, etc
length	1 m, 2 m, 4 m, 6 m, 8 m, 10 m and 12 m
width	25-400 - mm
thickness	25-400 - mm (can be customized according to customer's different requirement)
Low processing way	with burrs/on every line

Pictures of China Coal Reclaimed Railways Wooden Sleepers

14" 2200W Electric Rail Cutting Machine with CE

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1471
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of 14" 2200W Electric Rail Cutting Machine with CE

1.CE Approved
2.High Efficiency
3.Electricity powered
4.355mm/14inch
14" 2200W Electric Rail Cutting Machine with CE

Features and Functions of 14" 2200W Electric Rail Cutting Machine with CE

1.100% cooper wire motor (1800-2200w)   produces rotation speed of 3800 r/min and great cutting efficiency.
2.Convenient trigger witch with lock-off button prevents accident in operation.
3.Steady structure,prefect wheel cover dsign and skid handle ensures safety and comfortable operation.
4.Superior painting for beautiful appearance.
5.Applicable for cutting various materials such as steel pipe,shaped steel,round bar,angle iron,conduit and etc.
6.Support fence adjust 45°right and left,3 locations for various material sizes.
7.Adjustable depth stop for precise,repeatable cutting depth.
8.Shaft lock for easy wheel changes.

Parameter of 14" 2200W Electric Rail Cutting Machine with CE

Condition:	New	Place of Origin:	China (Mainland)	Brand Name:	China Coal
Model Number:	J1G-ZBA3-355	Voltage:	220V	Rated Power:	2200W
Dimension(L*W*H):	53*29*39	Weight:	14.5KG	Certification:	CE
Color:	yellow	material:	Aluminum and iron	G.W/N.W:	16/14.5
Blade dia.(mm):	355mm	Maximum cutting depth:	100mm	No load speed(rpm):	3800rpm
Rated frequency:	50/60Hz

Pictures of 14" 2200W Electric Rail Cutting Machine with CE

New Type XRC Series Slope Passenger Wagon for Mine

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1429
chinacoal011

Introduction of New Type XRC Series Slope Passenger Wagon for Mine

XRC Series Slope Passenger Wagon for Mine is the safety personnel transportation equipment of all kinds of mining slope roadway, which is suitable for the slope roadway that gradient is less than 30. The slope man car is driven by electric winch, which are fast, safe and convenient. The number of the person on man car depends on the angle of mine. In order to ensure the safety of the personnel, the man car is equipped with brake device that can safety brake when it comes to wire rope fracture or obstructions.

Parameter of New Type XRC Series Slope Passenger Wagon for Mine

Model: XRC10-6/6,XRC8-6/6,XRC15-6/6
model significance:
TakeXRC10-6/6For Example:
X——slope roadway
R——man car
C——XRC
10——seating capacity
6——gauge

6——traction

Item	Unit	Slope man dolly car		Level laneway
		XRC10-6/6	XRC15-6/6	PR12-6/3
Max.traction force	KN	60	60	30
Max.running speed	M/s	4	4	3
Tilt angle	degree	6-30	6-30
Min.turning radius	m	12	12	9
	degree	10	10
Orbit	Kg/m	15-24	15-24	15-24
Bogie center distance	Mm	3200	3200
Applicable gauge	Mm	600	600	600
Person No. Of embarking	No. Of person	10	15	12
Drive type		Inserting sleeper	Inserting sleeper
	Kg	1702	1850
	Kg	1821	2000
dimension	mm	4970*1016*1468	51718210*1120*1468	4336*1030*1520

Pictures of New Type XRC Series Slope Passenger Wagon for Mine

Concrete Rail Tie Railway Sleeper

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1529
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of Concrete Rail Tie Railway Sleeper

Concrete sleeper is also called concrete pillow, pillow, also known as concrete. Made of concrete, reinforcement, combination and become, appearance is hard, long service life. Concrete sleepers in accordance with the installation can be divided into U-shaped ring and pressure plate bolts. U-shaped concrete sleepers ring easy to install, simply put the rail between two U-rings, rubber pad underneath it, and then using a sledgehammer spending a U-shaped loop to suppress rail. Concrete sleepers bolt plate is to use T-bolt holes from piercing reserved sleeper following fixed platen press and hold the rail above, a sleeper requires four sets of bolts, 4 plate, two rubber pads, this sleeper easy maintenance , can be reused.

Parameter of Concrete Rail Tie Railway Sleeper

1.Normal sleepers	Width 220mm; thickness 160mm; length 2500mm;
2.Turnout sleepers (Normal)	Width 220mm; thickness 160mm; length 2600 ~ 4850mm, with 150mm carry a total of 16 lengths;
3.Turnout sleepers (Standard)	Width 240mm; thickness 160mm; length 2600 ~ 4800mm, with 200mm carry a total of 12 lengths;
4.Bridge sleepers	Width 220mm; thickness 240,260,280,300 mm; length 3000mm.

Pictures of Concrete Rail Tie Railway Sleeper

NQG-6.5 Internal Combustion Rail Cutting Machine

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1468
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of NQG-6.5 Internal Combustion Rail Cutting Machine

NQG-6.5 Internal Combustion Abrasive Rail Cutter is a bidirection wobble rail cutting machine with the lightest weight in the domestic market now.
NQG-6.5 Internal Combustion Rail Cutting Machine main frame is made of alloy constructional steel. It possesses features of derail-proof, quick cutting, high utilization grinding wheel efficiency, high cutting section precision, easy operation and good mobility.
NQG-6.5 Internal Combustion Rail Cutting Machine is  an ideal tool used to cut various rails.

Parameter of NQG-6.5 Internal Combustion Rail Cutting Machine

1, petrol engine power	6.5HP=4.8kw
2, cutting linear velocity	Vmax=80m/s
3, grinding wheel size	Φ400×Φ32×4
4, profile precision
a) verticality tolerance	≤0.5mm
b) horizontal tolerance	≤0.35mm
c) cutting profile	smooth and clean, no bluing
5,machine weight	≤43kg
6,wooden  box  packing	830mmX580MMX580MM

Pictures of NQG-6.5 Internal Combustion Rail Cutting Machine

Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck

Click below office website can knew more retails about product
http://www.railroadmachinery.com/productinfo1431
sales@chinacoalintl.com
+86-537-2350961
chinacoal011

Introduction of Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck

Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck is developed for mine working condition completely, applies to the transportation of open pit mine,reclamation works,steel works, hydropower construction site and port works.
The perfect functions of air window, windshield, and defrosting make it suitable for works in cold area.

Specifications of Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck

Brand Name: China Coal
Engine: WD615.47T2,371 HP EuroII
Transmission:HW21712 transmission (double oil pump) + HW70 Flange PTO
Frame: Double frame (10 + 10/380)
ABS control system: Without ABS.
Bumper: High bumper (metal)
Steering: ZF8118
Cab: HW7D
Exhaust air system: Standard
Front Axle: HF12
Driving Axle: AC26
Tyres: 14.00-25
Speed ratio: 10.47

Tipper box size:: 5800*3100*1700mm

Parameter of Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck

Truck Model					ZZ5707S3840AJ
Truck Brand					SINOTRUK--HOWO MINE DUMP TRUCK
Driving Style					Left hand driving
Dimension(L*W*H)(mm)					8460*3200*3475
Cargo body size (L*W*H, mm)					5900*3100*1800 32.92m3
Cargo thickness(mm)					Bottom:14mm, Side:12mm,rear door: 12mm
Cargo material					Manganese plate
Wheelbase				3800+1350
Approaching/Departure Angle(°)				29/35.5
Curb weight(kg)				20000
Loading Weight(kg)				80000
Engine	Model			WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection
	Fuel type			Diesel
	Horse Power, max(kw/rpm)			371HP
	Emission			EUROII
Fuel tanker capacity(L)				400
Clutch				430 diaphragm spring clutch Type A, hydraulic air booster
Transmission		Model		HW19710   10 forwards and 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Engine exhaust brake
Steering system		Model		ZF8098hydraulic steering with power assistance
Front axle		HF12
Rear axle		AC26reinforced wide cast steel, dual reduction, double tires drive axle(10.24)
Min. Ground Clearance		380mm( Front Axle)
Clutch		430diaphragm spring clutch A-type, hydraulic control and gas assistant
Color		Like picture
Tyre		14.00-25 big size mining use special tire 10PCS with one spare tire
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HW7D cab, (with air-condition), Unilateral cab skeletal skin-covered large surface strengthened special cabin, with large area of windshield glass, movable glass of the left door, visible sliding right window, HOWO instrument desk, air conditioner, heating system, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, view mirrors right and left, up and down road view mirrors, front shock absorber, rear spring coil diaphragm shock absorber on both sides, double hydraulic lock, which can turn forward with 50, with commode handle and footstep on the right platform

Pictures of Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck
