ZBL Ultrasonic Wall Thickness Gauge Measurement Meter

Introduction of ZBL Ultrasonic Wall Thickness Gauge Measurement Meter

ZBL Ultrasonic Wall Thickness Gauge Measurement Meter is a widely used ultrasonic thickness measurement gauge to test the thickness of concrete constructions such as boards, shear wall, beams, columns, etc. or any other non-ferromagnetic materials.

Parameter of ZBL Ultrasonic Wall Thickness Gauge Measurement Meter

Item		Specification	Item		Specification
Thickness measuring range		50mm～560mm	storage		200 projects or 14,500 tested points
Accuracy	±1mm	50mm～350mm	monitor		320×240、5.1 LCD inch screen
	±2mm	351mm～560mm	Power		Built-in lithium battery
Main instrument	size	190mm×135mm×52mm	Operating time	Main instrument	12hrs
	weight	0.74kg（battery included）		Emitting transducer	30hrs

Pictures of ZBL Ultrasonic Wall Thickness Gauge Measurement Meter

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

NT6200 Portable Personal Radiometer Dosimeter

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

Introduction of NT6200 Portable Personal Radiometer Dosimeter

NT6200 Portable Personal Radiometer Dosimeter is a portable X-γ radiation measuring instrument. Build in a high sensitive gamma beta Geiger-Muller counter.  With fast response, wide measuring range characteristics.

NT6200 Portable Personal Radiometer Dosimeter is widely used for measuring X-ray, gamma radiation. It’s a multipurpose radiation dose rate measuring instrument.

Functions of NT6200 Portable Personal Radiometer Dosimeter

-Measurement of gamma radiation ambient dose equivalent rate;
-Measurement of gamma radiation ambient dose equivalent;
-Measurement of surface beta-particles flux density;
-Measurement of ambient dose eq uivalent accumulation time;
-Real time measurement (clock).

Applications of NT6200 Portable Personal Radiometer Dosimeter

-Nuclear facilities around environmental radiation detection
- The soil surface radiation pollution detection
- Agricultural radiation pollution detection
- Ore, building materials radioactive detection
- Personal dose monitoring alarm
- Industrial X, gamma radiation detection
- Radiation medical treatment place radiation detection
- Cobalt source, electronic accelerator irradiation place radiation detection
- Radioactive radiation laboratory detection

Features of NT6200 Portable Personal Radiometer Dosimeter

- Large area digital LCD display backlight;
- Built-in gamma, beta sensitive Geiger-Muller counter;
- Simultaneously dose rate and cumulative dose measurement
- Automatic setting of measurement intervals and ranges;
- The maximum dose rate values keep function
- Automatic setting of measurement intervals and ranges;
- Automatic save dose value.
-Programmable dose rate alarm and cumulative dose alarm threshold
- Programmable voice, light and vibration alarm way
- Battery voltage and low battery indication;
- Automatic failure detection function

Parameter of NT6200 Portable Personal Radiometer Dosimeter

Measurement Ranges
dose equivalent rate (137Cs)	0.01 μSv/h~100mSv/h
dose equivalent (137Cs)	0.01uSv~9999Sv
Energy ranges
X and Gamma radiation	40Kev~3.0Mev
Energy dependence	Less than or equal ±25%(relative to 137Cs)
Relative errors	Less than or equal ±10%(in 20uSv/h)
Dose rate and dose alarm threshold value	full range can be adjusted
Protective alarm response time	not more than 3 seconds (in 10 uSv/h)
Display unit
Dose rate	uSv/h,mSv/h,Sv/h automatic conversion
Dose	uSv , mSv ,Sv automatic conversion
Battery	One AAA battery
Operating temperature range	-20~+50 Degrees Celsius
Weight	80g
Dimensions	80*55*15 mm

D1 Holiday Testing Detector

Introduction of D1 Holiday Testing Detector

D1 Holiday Testing Detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.
Characteristic of D1 Holiday Testing Detector
1. Low power consumption, small size, light weight
2. Simple operation

Parameter of D1 Holiday Testing Detector

Measuring range	0.03-3.5mm（Epoxy coal tar pitch medium）
Output high voltage	0.5-15KV
Display	pointer
High voltage control system	Ordinary potentiometer adjustment
DC supply	12v
Consumption	＜5w
Alarm delay	1-2s
High voltage probe	Electronic high voltage generator
Packing	metal chest
Main dimension	165mm×155mm×68mm
Weight	1.5kg（Including battery）

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

ZM-C160 Plate Compactor

Introduction of ZM-C160 Plate Compactor

ZM-C160 Plate Compactor SpecificationsDesigned for compaction in confined areas of granular soil in narrow trenches.

Application of ZM-C160 Plate Compactor

ZM-C160 Plate Compactor Designed for compaction in confined areas of granular soil in narrow trenches. These plates are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction.

Benefits of ZM-C160 Plate Compactor

*Foldable handle for easy transportation and stock. (straight handle is also available)
*Open plate provides self cleaning
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Radius base plate for easy access to corners
*Throttle control for easy holding working speed.(Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper
engine and handle. *Rubber & canvas mat for brick paving compaction
as option. *Cast Iron Plate is available as optional

Parameter of ZM-C160 Plate Compactor

Model	ZM-C160
Engine type	air-cooled, single cylinder,4-stroke
Engine	Honda GX160/Domestic 200f
Power(HP)	6.5
Vibrational frequency（V.P.M)	5500
Size of base plate(L*W)(cm)	53*52
Compaction depth(soil)(cm)	30
Centrifugal force(KN)	20
Net weight(kgs)	85
Shipping weight(kgs)	90
Shipping size(L*W*H)(cm)	91*55*73

Pictures of ZM-C160 Plate Compactor

Long Distance Dustless Shotcrete Machine

Introduction of Long Distance Dustless Shotcrete Machine

Long Distance Dustless Shotcrete Machine has sealing technology of German, using the tapered feeding device, and sealing through the tapered joint, which improves the sealing reliability

significantly, the dust concentration next to the machine can be lower than the national standard 10 mg/m³.
German design philosophy, the use of the blade wheel and the gas compartment structure to discharge materials, making the transport distance extended, the horizontal maximum spraying distance can reach 1000 m.
The Long Distance Dustless Shotcrete Machine's blade materials cup and the rotating speed are scientific configuration, which maximum reduce the pulse of the shotcreting materials inside of the conveying pipe. So that the shotcreting materials can be injected into the wall of the roadway in a more uniform state, which can improve the strength of the shotcreting surface and reduce the concrete rebound rate.
With the full hydraulic drive, the operation of the device is safe and reliable.
The using of the caterpillar running device makes it move more convenient and quickly.

Parameter of Long Distance Dustless Shotcrete Machine

NO.	ITEM	UNIT	PARAMETER
1	Production Capacity	m³/h	8
2	Gas Consumption	m³/min	12-15
3	Air supply pressure	MPa	＞0.4
4	Jet distance （horizontal）	m	700
5	Grain diameter	mm	≤18
6	Driving power	kw	18.5
7	The rotor speed of the tapered feeding	r/min	23
8	Speed of the blade	r/min	32
9	Material cup volume	L	2×4
10	Dimension	mm	2000X1000X1350

Pictures of Long Distance Dustless Shotcrete Machine

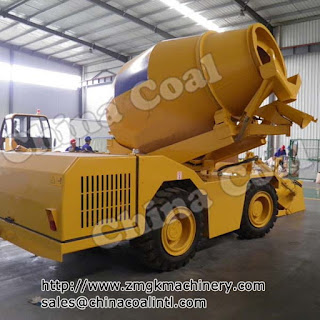

FM3.5-2 Mobile Concrete Mixing Self Loading Truck

Introduction of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.
Low upfront cost
Reduce transportation cost
Minimize labor cost
Maximize job efficiency

Features of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

FM3.5-2 Mobile Concrete Mixing Self Loading Truck feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
High Efficiency
Capacity:14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
Labor-saving
4 wheel drive, 4 wheels steering
Accurate Electric Weighing System
The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
Loading, Weighing, Pumping, Mixing, Delivering, Discharging.

Parameter of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

Name	Item	Specification
Vehicle	Net	7500kg
	Gross	15000kg
	Transmission	Hydraulic
		4*4
	Brake	Hydraulic Brake
		Front and Rear Independent System
	Chassis	Off Road, CARRARO axle
	Distance of Front/Rear Wheelbase	1905mm
	Wheelbase	2155mm
	Loader	Capacity	0.6m³
		Control	Hydraulic
	Tile Angle	30%
	Speed	High	0-20km/h
		Low	0-9km/h
	Min.Turning Radius	6.5m/R
	Tire	16/70-20
	Dimensions(L*W*H)	7011*2441*3310(MM)
Diesel Engine	Type	4BTA3.9-C110
	Rated Power/rpm	82KW/2200rpm
	Max.Torque/rpm	460N.m/1400rpm
	Cylinder	4-cylinder/3.9L
	Bores	102mm
	Cooling Type	Water cooling
	Fuel Consumption	207g/kw.h
	Starter	Electric
	Emission Standard	China II
Mixing Drum	Drum Capacity	3.5m³,14m³/hr.
	Bank Angle	16°
	Rotation Speed	10-16r/min
	Angle of Drum Rotation	no less than 270°
Chute	Swing Angle	no less than 60°
	Angle Control	Hydraulic
	Size	Long:106cm
		Short:40cm

Pictures of FM3.5-2 Mobile Concrete Mixing Self Loading Truck

ZBL-T720 Digital Thickness Gauge Meter

Introduction of ZBL-T720 Digital Thickness Gauge Meter

1. ZBL-T720 Digital Thickness Gauge Meter is professionally designed with a high sensitivity receiving system and mini receiver probe. The measuring range is 50mm ~ 560mm, and the testing accuracy is much better than other similar products. It is an outstanding and world leading product.

2.Double-sided measuring the thickness of tested board. Neither preliminary work nor couplant is needed.

3.Testing results are accurate, testing method is simple and convenient. Thickness results displayed immediately.

4. ZBL-T720 Digital Thickness Gauge Meter can Real-time display of test data, smart estimation of the thickness value, and automatic saving of the test values. The test results are accurate and reliable.

5.Original data is saved automatically; statistical analysis results can be checked onsite.

6. USB port allows easy transfer of data to a PC.

7. Extension bar and multi-directional probe make the taking of measurements convenient, fast, and reliable.

8.A USB port is used to transfer the test results to a computer, for data storage and further analysis

9.Powerful and professional analysis software provides comprehensive later stage data processing and automatically generates test reports.

10.Rechargeable lithium battery enables long operating times, is convenient to use and both economically and environmentally friendly.

Parameter of ZBL-T720 Digital Thickness Gauge Meter

Item		Specification	Item		Specification
Thickness measuring range		50mm～560mm	storage		200 projects or 14,500 tested points
Accuracy	±1mm	50mm～350mm	monitor		320×240、5.1 LCD inch screen
	±2mm	351mm～560mm	Power		Built-in lithium battery
Main instrument	size	190mm×135mm×52mm	Operating time	Main instrument	12hrs
	weight	0.74kg（battery included）		Emitting transducer	30hrs

Pictures of ZBL-T720 Digital Thickness Gauge Meter

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

Dynamic Pile Testing Equipment

Introduction of Dynamic Pile Testing Equipment

By using the reflected wave method, the Dynamic Pile Testing Equipment is used to assess the integrality of concrete pile and identify the extent and location of the pile defect.

Application of Dynamic Pile Testing Equipment

Dynamic Pile Testing Equipment can be used for testing perfusion pile and hammer pile. It can also be used for testing the exposed top surface of constructions such as pillars.

Hammer instrument: use different types of hammer (different energy/material) for different types of piles (lengths, etc.)

Parameter of Dynamic Pile Testing Equipment

Item	Specifications	Item	Specifications
Control Mode	Embedded platform,Win CE Operation System	Monitor	8.4 inch,high brightness,TFT Color LCD
Data storage	2GB,SD card	Operation Mode	Touch screen
Trigger	Signal trigger	Ports	USB port
Noise voltage of the system	≤2 mV	Dynamic range	³184 dB
Amplifier frequency range	1Hz~10kHz	Input impedance	³1 MW
Sampling time intervals	6µs~64ms	Time resolution	6µs
Max length of sampling	³1024	Gain error	≤1 dB
Amplitude nonlinear degree	≤10%	Timing accuracy	≤1%
Floating point magnification (time)	1~256	Sentinel magnify (time)	1~1,000,adjustable
A/D resolution	16 bit A/D,8 bit floatingpoint	Max magnify (times)	256000
Number of channels	2	Transducer sensitivity	³100 mv/g(acceleration mode)
Consistency of phase position of two channels	±3° or 0.05ms	Frequency range of Transducer	0.5~9000 Hz(acceleration mode)
Amplitude consistency of two channels	≤3% or ≤±0.2dB	Continuous operating hours	>5 hrs
Interference between channels	≤1%	Power	AC:220V±10%,DC:+12V
Dimensions	256mm´188mm´63.5mm	Weight	2.3kg(lithium battery included)

Pictures of Dynamic Pile Testing Equipment

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

Multi Gas Detection Equipment Gas Monitor

Introduction of Multi Gas Detection Equipment Gas Monitor

Multi Gas Detection Equipment Gas Monitor common application includes mining, metallurgy, petroleum, chemical, power, telecommunication, urban construction, etc.

Features of Multi Gas Detection Equipment Gas Monitor

Aseismatic design of Multi Gas Detection Equipment Gas Monitor is applied to rugged surroundings;

Continuously gas concentration and composition LCD real-time display;

Rechargeable lithium battery (continuous working period can be 16~18 hours);

95 dB acoustic alarm and two wide-angle optic alarm;

Multi Gas Detection Equipment Gas Monitor equipped with built-in vibration alarm which is applied for noisy environment;

Two stage alarm threshold: the low alarm point and high alarm is applicable to all gas;

Simple automatic calibration program and plug-in replaceable electrochemical sensor;

Fully functional self-testing: sensor, integrity of battery and circuit, acoustic & visual & vibration three-stage alarm.

Small figure and light weight

Functions of Multi Gas Detection Equipment Gas Monitor

Real-time detection for the concentration of appointed gas.

Multi Gas Detection Equipment Gas Monitor has a wide application, including HAZMAT response, enclosure space entry and post fire inspection.

The deadline date and alarm threshold can be adjusted based on the request in special industry.

Password protection capability: only the authorized user can modify the preset parameter.

Parameter of Multi Gas Detection Equipment Gas Monitor

Operating & Storage Environment	Temperature: -20℃~55℃ (-4F~122F) Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa
Alarm Threshold (Two-stage)	There may be regional variations, users can set up the value based on the practical situation.
Detecting Range	CO: 0~500 PPM SO2:0~20 PPM O2: 0~30.0%vol Ex(CH4): 0~100%LEL Other gas types: referring to the gas parameter list
Sensor	Referring to the gas parameter list
Alarm Type	low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Acoustic Alarm	Variable-frequency pulse alarm which can reach volume of 95dB in a distance of 1 foot (0.3 meters)
Visual Alarm	Two red LBD omnibearing visible glitter alarm
Vibration Alarm	Pulsant signals alert the gas alarm or any other alarm status
Display	Alphanumeric large LCD displays the real time gas concentration and alarm stage
Backlight	Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.
Self-checking Function	Self-checking after start up.
Calibration Function	Automatic zero point calibration ; Automatic measurement range calibration.
Power Supply	Rechargeable lithium battery
Weight	211g
Dimensions	126mm*66mm*33mm

Gas Parameter List

Gas	Detecting Range	Alarm Threshold	Sensor Type
NH3	0-100 PPM	25 PPM / 50 PPM	Electrochemical sensor
Cl2	0-50.0 PPM	0.5 PPM / 1.0 PPM
H2	0-1000 PPM	50 PPM / 100 PPM
CH2O	0-100 PPM	25 PPM / 50 PPM
O2	0-30.0%vol	18.5%vol / 23.5%vol
H2S	0-100 PPM	10 PPM / 20 PPM
HCl	0-30.0 PPM	5.0 PPM / 10.0 PPM
HCN	0-50.0 PPM	5.0 PPM / 10.0 PPM
PH3	0-20.0 PPM	0.3 PPM / 0.6 PPM
HF	0-10.0 PPM	3.0 PPM / 6.0 PPM
NO	0-250 PPM	25 PPM / 50 PPM
CO	0-500 PPM	35 PPM / 70 PPM
SO2	0-20.0 PPM	2.0 PPM / 4.0 PPM
ClO2	0-50.0 PPM	0.3 PPM / 0.5 PPM
NO2	0-20.0 PPM	1.0 PPM / 2.0 PPM
C2H4O	0-100 PPM	1 PPM / 10 PPM
O3	0-20.0 PPM	5.0 PPM / 10.0 PPM
CH4	0-100%LEL	25%LEL / 50%LEL	Catalytic combustion sensor
C3H8	0-100%LEL	25%LEL / 50%LEL
H2	0-100%LEL	25%LEL / 50%LEL
NH3	0-100%LEL	25%LEL / 50%LEL
C2H4O	0-100%LEL	25%LEL / 50%LEL
CH3CH3	0-100%LEL	25%LEL / 50%LEL
C2H4	0-100%LEL	25%LEL / 50%LEL
C4H10	0-100%LEL	25%LEL / 50%LEL
C4H8	0-100%LEL	25%LEL / 50%LEL
C7H8	0-100%LEL	25%LEL / 50%LEL
C8H10	0-100%LEL	25%LEL / 50%LEL
CH4O	0-100%LEL	25%LEL / 50%LEL
C2H6O	0-100%LEL	25%LEL / 50%LEL
C2H3Cl	0-100%LEL	25%LEL / 50%LEL
C2H7N	0-100%LEL	25%LEL / 50%LEL
CH3Br	0-100%LEL	25%LEL / 50%LEL

Remark: Some gas types are not listed. If any query, please contact the manufacturer. The

alarm threshold value can be adjusted based on customer’s request.

Pictures of Multi Gas Detection Equipment Gas Monitor

chinacoalgroup.com

m.chinacoalgroup.com

sales@chinacoalintl.com

+86-537-2350961

+86-18660760271

42m/45m Boom Concrete Pump Trucks

Introduction of 42m/45m Boom Concrete Pump Trucks
42m/45m Boom Concrete Pump Trucks designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of HONGDA Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands.

Features of 42m/45m Boom Concrete Pump Trucks

1. The big-diameter conveying cylinder has a strong suction ability and can afford large pumping flow.
2. The HBC wireless remote-control unit imported with original German packaging is light in weight and easy to carry. The operator can put the distributing boom in place simply by operating the handle bars.
3. The pumping capacity can be regulated through the steeples control device.
4. The stretching speed of the distributing boom can be regulated through the quick-and-slow steeples control device.
5. The slewing speed of the boom can be regulated through the steeples control device.
6. It is equipped with the emergency brake device and the automatic speed-control device for the diesel engine to reduce oil consumption.
7.Equipped with the STEIBEL transfer case and the REXROTH pump unit imported with original German packaging；
8.Equipped with slewing reducers and motors imported with original packaging；
9.Equipped with HAWE proportional multi-way valves imported with original German packaging；
10Equipped with originally-imported REXROTH valves and valves made by Italian oil-control companies.

Parameter of 42m/45m Boom Concrete Pump Trucks

Items		Unit	Parameters
			HDT5340THB-42/4	HDT5350THB-42/4	HDT5380THB-45/5	HDT5401THB-45/5
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	150	150	150	150
	Pumping Capacity Index	Mpa.m3/h	586	586	586	586
	Theoretical Pumping Pressure	Mpa	8.5	8.5	8.5	8.5
	Hopper Capacity	L	700	700	700	700
	Feeding Height	mm	1400	1400	1400	1400
	Distributing Valve Form		S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve
	Max. Distributing Radius	m	38	38	40.7	40.7
	Max. Distributing Height	m	41.8	41.8	44.7	44.7
	Max. Distributing Depth	m	29	29	31.3	31.3
	Height of Distributing Boom When Stretched	mm	8600	8600	8495	8495
	Distance between Front Landing Legs	mm	8820	8820	9550	9550
	Distance between Rear Landing Legs	mm	8500	8500	9550	9550
	Distance between Front and Rear Landing Legs	mm	8490	8490	9190	9190
	Diameter of Conveying Pipe	mm	125	125	125	125
	Length of Tail Hose	m	4	3	3	3
	Rotary Range of Distributing Boom		370°	365°	365°	365°
	Number of Boom Sections		4	4	5	5
	Rotary Angle of Each Boom Section	°	92/180/180/240	92/180/180/240	91/180/180/180/270	91/180/180/180/270
	Close-control Distance	m	33	33	33	33
	Remote-control Distance	m	200	200	200	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	85	85	85	80
	Min. Turning Radius	mm	11900	12100	11900	12100
	Brake Distance	m	10	10	10	10
	Approach Angle	°	16	16	16	16
	Departure Angle	°	11	11	11	11
	Chassis Model		ISUZU CYH51Y	HOWO ZZ5437S4667C	ISUZU CYH51Y	HOWO ZZ5437S4667C
	Wheel Base between the First and the Second Axle	mm	1850	1800	1850	1800
	Wheel Base between the Second and the Third Axle	mm	4605	4600	4605	4600
	Wheel Base between the Third and the Fourth Axle	mm	1310	1350	1310	1350
	Front Tread	mm	2065	2022	2065	2022
	Rear Tread	mm	1850	1830	1850	1830
	Max. Engine Power	kw	287(1800r/min)	275(2200r/min)	287(1800r/min)	275(2200r/min)
		Horsepower	390	375	390	375
	Engine Model		6WF1D	WD615.96	6WF1D	WD615.96
	Max Engine Torque	n.m	1863(1100r/min)	1500 /(1100~1600 r/min)	1863(1100r/min)	1500 /(1100~1600 r/min)
	Max. Grade Ability	%	37	37	35	35
	Fuel Consumption Limit	L/100km	38	38	40	40
	Overall Dimension (L ×W× H)	mm	13800×2490×3995	13650×2490×3960	13100×2500×3900	13300×2500×4000
	Full-load Total Weight	kg	34500	35000	38000	40000
