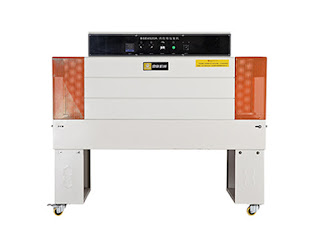

BSE-4520A Jet Shrink Tunnel (air circulation)

http://www.chinacoalintl.com/#Celia
https://m.chinacoalintl.com
E-mail: zhongmeixx12@gmail.com
chinacoal03

BSE-4520A Jet Shrink Tunnel (air circulation)

BS–4520A Thermal Shrink Packaging Machine is suitable for shrink films such as POV, PVC, PP, POF, etc., There are shrinking tubes on the top, bottom and sides of the shrinking room. The temperature of the shrink room and the speed of the conveyer are adjustable. And the size of the machine can be customized.

Features:

1.  Compact construction, high efficiency.

2.  The use of intra – red Quartz heater tube reduces the power consumption.

3.  Strong air – flow ensures excellent heat distribution for an even shrinking.

4.  The temperature controlling system makes the operation easily.

5.  The speed of the conveyer is adjustable.

Specification:

Model	BSE-4520A
Voltage	380V/3PH 50-60Hz
Power	9KW
Conveyor Speed	0-15m/min
Tunnel Size	450*200*1200mm
Heater type	Steel Heater
Heater Size	1050mm*6
Conveyor Loading	10kgs
Machine Size	1700*750*1500mm

BSS-1538B Label Shrink Packager

http://www.chinacoalintl.com/#Celia
https://m.chinacoalintl.com
E-mail: zhongmeixx12@gmail.com
chinacoal03

BSS-1538B Label Shrink Packager

Summarize:

This series label shrink machines are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottle or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.

◆Intelligent shrink temperature control

◆Conveyor speed is adjusted by stepless adjustor

◆Unique conveyor device to ensure stable transmission

Specification

Model	BSS-1538B
Voltage	220V /50-60HZ
Power	9KW
Tunnel size (L x W x H)mm	1000x150x380
Max.Packing size（mm）	￠105 x 350H
Conveyor motor	AC90W/220V
Conveyor speed	0-10m/min
Max.loading	15KGS
Shrink film	POF,PVC,PP
Weight	96KGS
Dimension (mm)	1500x350x1500

BSS-1538C Label Shrink Packager

http://www.chinacoalintl.com/#Celia
https://m.chinacoalintl.com
E-mail: zhongmeixx12@gmail.com
chinacoal03

BSS-1538C Label Shrink Packager

Summarize:

This series label shrink machines are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottle or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc. In it, BSS-1538C label shrink machine is only to shrink label on the top of bottle.

◆Intelligent shrink temperature control

◆Conveyor speed is adjusted by stepless adjustor

◆Unique conveyor device to ensure stable transmission

Specification

Model	BSS-1538C
Voltage	220V /50-60HZ
Power	7KW
Tunnel size (L x W x H)mm	1000x150x150
Max.Packing size（mm）	￠105 x 350H
Conveyor motor	AC90W/220V
Conveyor speed	0-10m/min
Max.loading	15KGS
Shrink film	POF,PVC,PP
Weight	90KGS
Dimension (mm)	1500x350x1500

BS-D4520 Thermal Shrink Tunnel

http://www.chinacoalintl.com/#Celia
https://m.chinacoalintl.com
E-mail: zhongmeixx12@gmail.com
chinacoal03

BS-D4520 Thermal Shrink Tunnel

BS-D4520 shrink tunnel characteristic：

1 It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make  temperature system more accurate, prolong the working life.

2 It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult  abraded (you can choose net type conveyor)

3 It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.  4 Inside wall adopts stainless steel,  it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.

application： This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is  suit POF, PE, PVC and other packaging material.

optional items：

1. inlet conveyor

2. connecting device (for packing small products)

Specification

Model	QL5545	BS-D4520
Max packing size（㎜）	L450×W350×H100	W450×H200
Max sealing size（㎜）	L550×W450	/
Power（KW）	1.30	8.5
Capacity	0-20 pcs/min	0-15 pcs/min
Voltage	220V 50/60HZ	380V 50/60HZ
Sealing temperature	160℃—240℃ depends on thickness of film and environment temperature	160℃—240℃ depends on thickness of film and environment temperature
Thickness of film(mm)	0.015－0.10	0.015-0.10
Air pressure(Kg/cm2) )	5	5
Packing material	POF PVC	POF PVC
Machine weight(㎏)	320	210
Machine size（㎜）	L1700×W900×H1400	1700*900*1400
